CIVET Coding Form Templates

A CIVET template file specifies the individual components of the form: these are the familiar components from web forms but the syntax used to specify them is simpler than what you will find in HTML.

CIVET is simply adding these controls to an HTML <form> and, as with all things HTML, most of the placement of the fields is handled by the browser. [1] CIVET provides some limited formatting through the insertion of text and line breaks, and with some experimenting you should be able to keep the form from being too ugly.

The template file should be a simple text file—most systems are happier if this ends in the suffix .txt—similar to that used in an R or Stata script (that is, not a formatted file such as that produced by MS-Word). Appendix 1 gives an example of a template file, and the code for this can also be downloaded from a link in the program.

Simple Template-Based Data Entry Form

The basic data entry form just uses the presumably familiar standard HTML data entry fields and should be self-explanatory.

To save a set of coded fields, click one of the buttons which follow the title Options after saving:

Code another case:
Save, then return to the same form
Download data:
Save, then download data as a tab-delimited text file

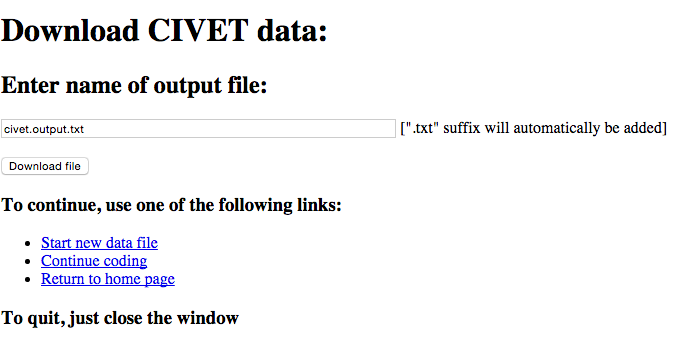

The Download CIVET data page provides a text box for a file name, and the Download file button downloads the coded data. Use the Start new data file link to re-start the coding and the Continue coding with this file link to continue adding to the existing records.

  • The .txt file is tab-delimited and contains the variable names in the first line.
  • If the file name does not end in “.txt,” this suffix will be added.
CIVET Data download page

Command formats

Commands generally have the following format

command: entry-title [var-name] options
comma-delimited list

Commands vary in how many of these components they have, but all follow this general pattern.

Each command ends with a blank line (or, if you prefer, the commands are separated by blank lines.)

Commands can also be cancelled by adding a “-” in front of the command: this will cancel the entire command, that is, all of the lines associated with the command, not just the first line. [2] For visual symmetry, a “+” in front of the command “activates” it, though the command will also be active without the plus.

“#” denotes a comment: anything following a “#” is ignored, so lines beginning with “#” are completely ignored.

Items in template specification

The commands involve one or more of the following items:

This is the title of data entry field. If this ends with / a line-break (<br>) is inserted after the text. The titles are escaped: at present the characters <, >and the single and double quotes are replaced with the equivalent HTML entities &lt;, &gt; &quot; and &rsquo;. [3] The entry-title field cannot contain the characters “[” or “]”—if these are present they will be interpreted as bounding the var-name field—but the escaped versions “\[” and “\]” are allowed.
The text of the variable name for this field; this will be used in the first line of the .csv output file
A list of the items that can be selected, separated by commas. A ‘*’ at the beginning of the item means that it will be initially selected.
A list of items which appear in var-name fields, separated by commas.
Any text
An integer

Errors in template commands

There is a fair amount of error trapping as the commands are processed; any problems will reported on a web page. Generally the system will stop after it has encountered the first error rather than reporting all of the errors in the file.

Specifying variables

Specifying variables to save

This command gives the variables that will be saved; these can be in any order but each of these must correspond to a var-name somewhere in the form, or are one of the special variables discussed below. A tab-delimited version of this list will be the first line of the output file. The command can occur anywhere in the file.


If the variable name has brackets following it, the value of the variable rather than the literal text will be written when the data are written to a tab-delimited file: the value is the string in brackets […] in the annotated coding mode. If there is a variable name inside the brackets, that will be used as the column name for the values; otherwise the regular name will be used: this allows both the literal text and the value to be saved, as in the third example below.

If save specifies a value output and not is found, the output depends on the preference civet_settings.USE_TEXT_FOR_MISSING, which also can be set on the “Preferences” page. If this is True, the text will be used; otherwise the string in civet_settings.MISSING_VALUE will be used.


worldregion, eyewit, groupname, comments

worldregion [regioncode], eyewit, groupname[], comments

worldregion, eyewit, groupname, groupname [groupcode], comments


Sets the value of a variable to a constant; this can be used in a save:

constant: page-text [varname]


constant: Data set 0.2 [data_id]


Sets the default file name for the downloads: this can be changed before downloading.

filename: page-text


filename: our_wonderful_data.csv

Special save variables

Coder text entered in the CIVET template selection page
Current date. this is currently in the form YYYY-MM-DD. [4]
Current time in hh:mm:ss format

Commands only relevant in workspaces


Sets an initially unchecked checkbox for the special variable “_discard_”, which can be used to indicate that a collection has been evaluated by a coder but nothing was coded. When this is checked, a case is generated for the collection containing only the “_discard_” variable; those cases are not used to generate data.

discard: entry-title


discard: Texts are not codeable


Creates a textarea box for the special variable _comments_ which will be added to the “casecmt” meta-data for the case being coded. _comments_ can also be added to the output data like any other variable, but this is not required. The default size of the text box is 4 x 64 characters; alternative sizes can be specified by adding an empty set of brackets followed by rows and cols using the same format as the textarea command. [5]

comments: entry-title
comments: entry-title [] rows = number cols = number


comments: Enter any additional comments about this case

Special save variables for workspaces

These variables will not include any texts that were deleted using shift-click on the lede. [7]

collid field of the collection
Comma-delimited list of the textpublisher fields of the texts in the collection
Comma-delimited list of the textbiblio fields of the texts in the collection

Data entry fields

Any of these commands can be prefixed with “//”, which inserts a <p></p> or a “/”, which inserts a <br>.

checkbox: Binary checkbox

A simple binary check-box. The value of the variable will be first item in the list when the box is not checked; the second item when the box is checked. The * notation on the second item can be used to specify whether or not the box is initially checked.

select: entry-title [var-name]


checkbox: Eyewitness report? [eyewit]

select: Pull-down menu

Pull-down menus—which are called a “select” in HTML—are specified with the syntax

select: entry-title [var-name]


select: Region [worldregion]
North America, South America, Europe, *Africa, Middle East, Asia``

dynselect: Select from dynamic pull-down menu [workspaces only]

Pull-down menus which are specified dynamically using the categories section in the collections are specified with the syntax

dynselect: entry-title [var-name]


select: Region [worldregion]

If the category-name is not found in the collection, the control defaults to a single entry ---: this allows for situations where there were no items found in the category.

radio: Radio buttons

A series of radio buttons are specified with the syntax

radio: entry-title [var-name]

The entry / in the option list causes a line-break (<br>) to be inserted


radio: Region [worldregion]
North America, South America, Europe, *Africa, /,Middle East, Asia

textline: Enter single line of text

This creates a box for a single line of text (HTML `` type=text``). The width = number is optional and specifies the size of the text entry box in characters: the default is width = 32

textline: entry-title [var-name] width = number


textline: Name of group [groupname]
<enter name>

textclass: Extract single line from annotated text

This creates a box for a single line of text (HTML `` type=text``) that will interact with annotated text; in addition information can be manually entered or cut-and-pasted into this box. If this command is used in a form that does not have associated annotated text, it behaves the same as textline and the class information is ignored.

The class=class-name is required and specifies the name of the annotation class that the text-entry box is connected with; a class can be associated with multiple text-entry boxes. There are four standard classes:

  • nament: named-enties, which are determined by capitalization

  • geogent: geographical locations, which are determined by a

    combination of prepositions and capitalization [8]

  • num: numbers

  • date: dates

The width = number is optional and specifies the size of the text entry box in characters: the default is width = 32

textclass: entry-title [var-name] class=class-name width=number


textclass: Name of city [cityname] class=nament
 <enter city>

textarea: Enter multiple lines of text

This corresponds to an HTML “TEXTAREA” object. The rows = number cols = number is optional and specifies the size of the text entry box in characters: the default is rows = 4 cols = 80

textarea: entry-title [var-name] rows = number cols = number


textarea: Description [descript] rows = 2 cols = 64
Briefly describe the incident

Linking fields

textsource: Extract sources from annotated text

A textsource: field can be automatically linked to a textclass: field so that the information in the textid: and/or textbiblio: field for the workspace text block where an annotated word or phrase has been extracted will be automatically added. This linkage is done by using the variable name from a textclass field with _src added to the end.

Except for the linkage, a textsource variable acts like a regular text variable: information can be typed or pasted into the text box—typically this will be done from the Source information that is visible when the Show Comments option is active—and the variable can be saved.

If the variable name does not correspond to a textclass variable with an added _src, textsource behaves the same as textline. [9]

The textid:/textbiblio: content is controlled by the preferences “Use textid in source citation:” and “Use textbiblio in source citation:”; the default uses only textbiblio:.

The width = number is optional and specifies the size of the text entry box in characters: the default is width = 32

textsource: entry-title [var-name] width = number


textsource: Source for city [cityname_src] width=40
<enter source>

Additional web page formatting

title: Set page title

Sets the title of the web page: that is, the HTML``<title>...</title>`` section of the header.

title: page-title


title: CIVET-based coding form

Insert text

Adds text to the form: the various options follow the usual HTML formats. In interests of simplicity, text is “escaped” so that special characters are not interpreted as HTML: note that this means that in-line mark-up such as <i>, <b> and <tt> will not work, so if you need this activate and use the html: command. Also keep in mind that these commands need to be separated by a blank line.

A “/” in the page-text will add a line-break <br>. To include a “/” in the text, use “//”.

h1: page-text
h2: page-text
h3: page-text
h4: page-text
p: page-text


h1: Primary data set coding form

p:Please enter data in the fields below,/ and be really, really careful!

The simple command


is useful for putting some space between form elements; this is equivalent to the “//” prefix in the data entry commands.

newline: Insert a line break

Adds a new line in the form; this is equivalent to the “/” prefix in the data entry commands.


newpage: Insert a page break

Adds a new page to the form.


Advanced formating options

A CIVET form is simply a web page, and consequently can be controlled by the standard commands for displaying web pages, notably cascading style sheets (CSS).

Set css

Adds the text which follows the command to the <style>...</style> section in the page head. The text block is terminated by a blank line.

one or more lines of css definitions

Set form division sizes

This is a short-cut that for most options just changes the size of various components in either of these forms:

size: [division-name] width = <length> height = <length>
size: [division-name] width : <length>; height : <length>

<size> can be any of the CSS “length” formats:

division-name is one of the following:

over-all size of the page
size of CKEditor text box on the annotation page
size of the scrolling text display on the coding page
size of the coding form created by the template in both the basic form and the coding page


  1. The system does not check for the validity of either the division names or the CSS <length> specification; if they can’t be interpreted they are ignored.

  2. size commands can occur anywhere and can be combined with a css command: if they occur before the css command the contents of css will override size, and vice-versa if they occur afterwards: the CSS string for the <style>...</style> section is assembled in the order the commands occur.

  3. Because CSS doesn’t use object-like inheritance, the size: [body] command resets all of the properties of body, leaving only width and height set in the style, e.g.

    body {

    If you want to change the size but also retain other characteristics, use css to define the complete body style.

  4. The civ-editor command changes the size in the configuration of CKEditor rather than any CSS, so this name cannot be used in css: (well, it can be used but it won’t do anything...). CKEditor does not allow the “%” option to be used as a “height”: see!/guide/dev_size. The CKEditor defaults to the width of the page (more or less) and a height of 200px.

  5. The civ-form and civ-text-display names correspond correspond to <div class='name'> in the content of the form; you can modify these directly by using a css:``command. The ``size command resets the <name>-size class, which only controls the size.

Insert HTML

[This command may or may not be included in the operational version of the system, as it provides some opportunities for mischief. Stay tuned. It is in the code but currently deactivated; if you are installing your own version of the system, it can be activated by setting civet_settings.HTML_OK = True.]

Adds arbitrary HTML code without escaping.

one or more lines of HTML


[1]Writing in HTML5 and CSS, one can actually exercise a very fine degree of control over the placement, but if you are comfortable with that sort of code, you presumably aren’t using CIVET in the first place. That said, you can see the HTML generated by CIVET by using the View source option in your browser, then save it as a file using Save Page As... and that could provide a starting point for creating prettier code.
[2]This feature is actually a bit more subtle: cancellation is invoked when the first character in a line is “-” and there is a “:” in the line, which will always occur with a command. This allows default texts such as “- - -” to be used, though a default text such as “- - -: we really want to confuse CIVET” will cause an error.
[3]In the current implementation, named HTML entities such as &copy; and &euro; can be included and should produce the correct character. At present numbered entities such as &#91;—the HTML equivalent of ’]’—do not work since the # is interpreted as a comment delimiter: depending on whether there is demand for this feature, the system could provide a way around this.
[4]This format can be changed in the function get_special_var(avar) in It is specified using the extensive Python/C date format operators shown here.
[5]In fact, the comments: command is just a shorthand for textarea: entry-text [_comments_], and this will have the same effect, with the contents added to the metadata.
[6]Neither a bug nor a feature: just is what it is.
[7]At present, only these two fields are available, but it is relatively straightforward to add the others by just following the existing code that you locate in a search for “textpublisher”
[8]This is only done in the automatic annotation if civet_settings.USE_GEOG_MARKUP = True: see the discussion in the Preferences chapter.
[9]In a future version of CIVET we hope to have a facility where citation information can be transferred into a textsource field by clicking on a lede but this has been implemented yet. Preferences chapter.
